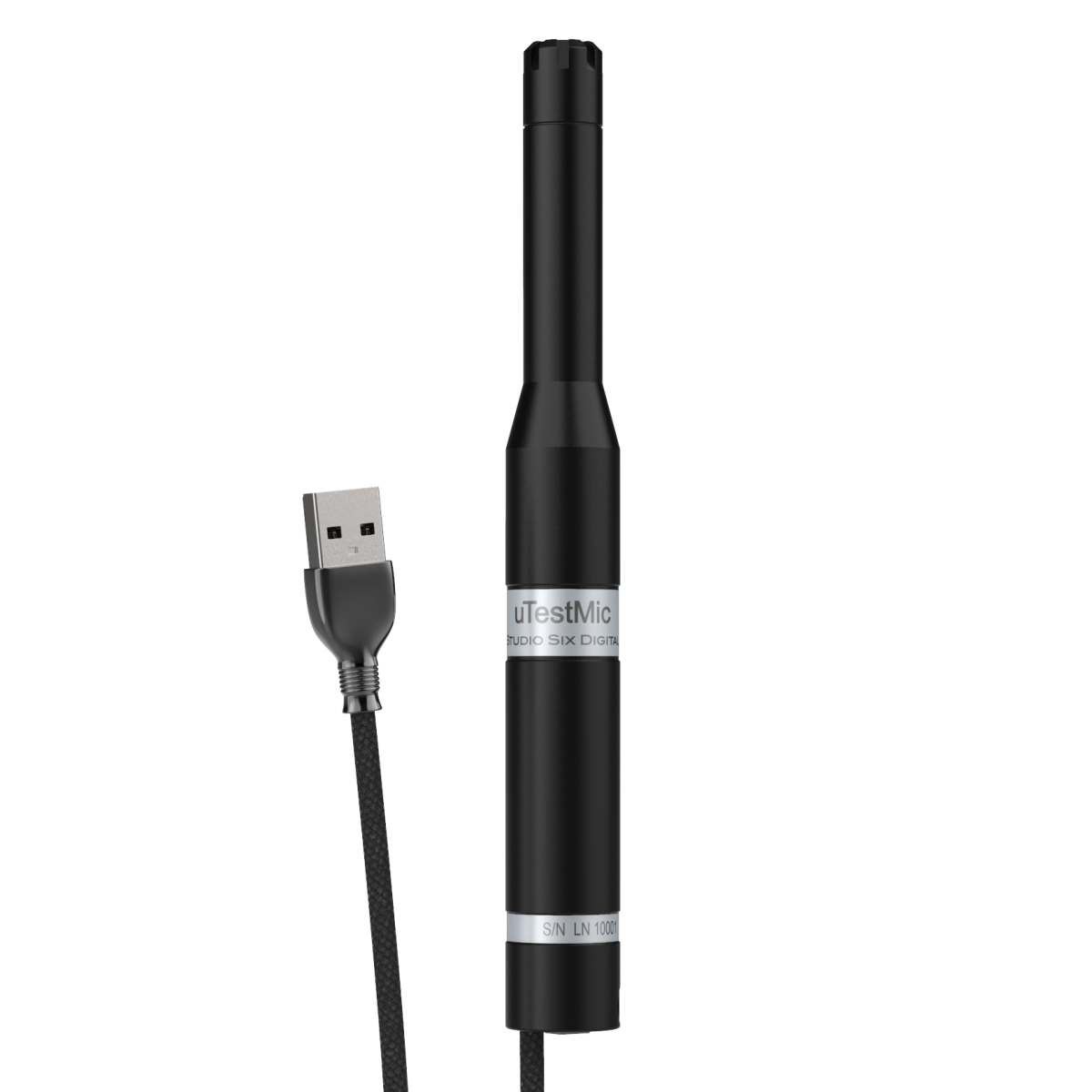

uTestMic USB

The uTestMic is a legacy device replaced with the new iTestMic2 USB-C.

USB Connection

uTestMic is designed to work with hardware devices that support USB audio through the use of standard USB audio class device drivers.

The blue LED on the bottom lights when a USB audio connection has been established with the host device.

uTestMic has a 2m cable with attached USB A connector. It ships with adapters for USB micro and USB C. To use uTestMic with an iOS device that has a Lightning or 30-pin connector, an adapter such as the Apple Camera Connection kit is required.

It is possible to extend the USB Cable length using a standard USB A extension cable. Lengths up to 5m have been tested successfully,



USB Power

uTestMic is powered over USB, directly from the attached  device. If you wish to also power your mobile device while using uTestMic, you can use any standard USB powered hub. Just plug uTestMic into the hub, and plug the output cable into your mobile device.

Audio Output

uTestMic includes an 1/8” (3.5mm) stereo output jack. This will be used as the audio output for all mobile devices, and can be used on computers by selecting it as the audio output source.

Note that this is a line-output signal, and is not designed to drive headphones.

App Compatibility

uTestMic is compatible with AudioTools, and many other iOS Apps which record or process audio. It is also compatible with audio apps running on any hardware platform that support audio input from a USB audio device, such as Smart or Spectrafoo on Windows, and any of a number of apps that run on Android that accept input from a USB audio source. Check with your app developer if you are unsure as to whether their app will work with a USB audio input device.

Calibration

Every uTestMic is factory calibrated and the calibration level and frequency response correction data is stored in a file on the S6D server.

Includes

  • uTestMic with USB-A connector
  • USB micro and USB-C adapters
  • Wind screen
  • Mic clip
  • Calibration certificate

Specifications

Audio

  • 20Hz - 20kHz +/- 3dB (uncorrected)
  • 20Hz - 20kHz +/- 1dB (using supplied correction file)
  • Omnidirectional pattern
  • Free-field response
  • 28 dBA - 118 dBA performance in two ranges (using AudioTools); 28-96 dBA, and 48-118 dBA (typical)
  • NC Limit: Below NC30
  • 48k / 16bit USB Digital Audio connection
  • Responds to USB gain HID commands
  • Mono input signal, present at both Left and Right USB audio device input channels

Output

  • 3.5mm (1/8") stereo analog output jack (full volume level)
  • Low-distortion output

Microphone

  • Excellent immunity to cell phone RF noise
  • Factory calibration stored in supplied file, calibrated with a NIST-tracable 94.0 dB pressure-compensated calibrator
  • 1/2" nominal size, fits all standard calibrators
  • Consumes less than 50ma in use
  • 2.0m (74”) USB A cable length

Compatibility

  • iOS Lightning, using Apple Camera Connection kit
  • iOS 30-pin, using Apple Camera Connection kit
  • Microsoft Windows
  • Android using USB-C or USB micro adapters (included)
  • iPod Touch 5th & 6th generation

Additional Information

The low-noise mic preamp, A/D converters, D/A converters and USB digital audio interface are all contained within the mic itself, so no external analog electronics are used. This gives us a direct digital audio connection to the connected device.

iTestMic2 is equivalent to having a Class 2 test & measurement mic, low-noise matched preamp, A/D converter, DAC, and USB digital audio interface, all combined in one portable device.

uTestMic2 meets ANSI / ISO Type 2 specifications for frequency response, linearity, and directional characteristics.  S6D do not guarantee that this microphone can meet the strict environmental requirements of Type 2 or Type 1.
